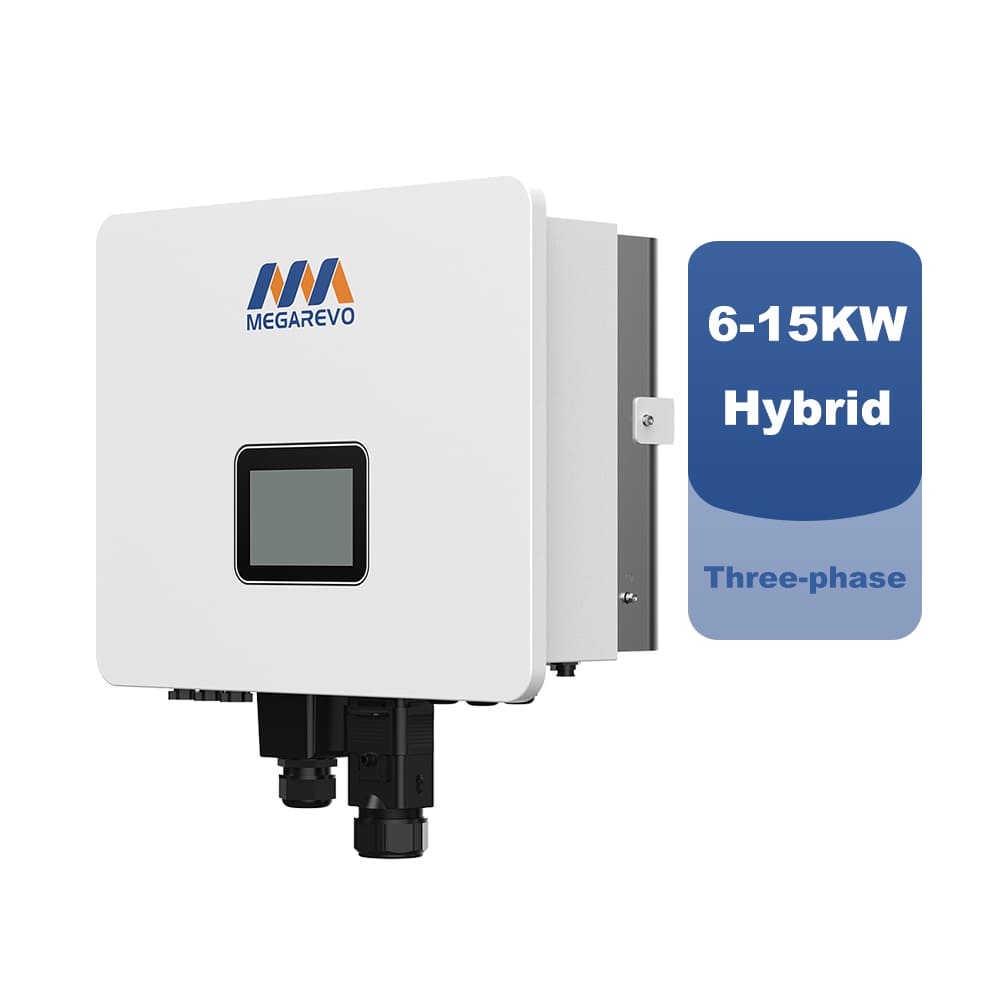

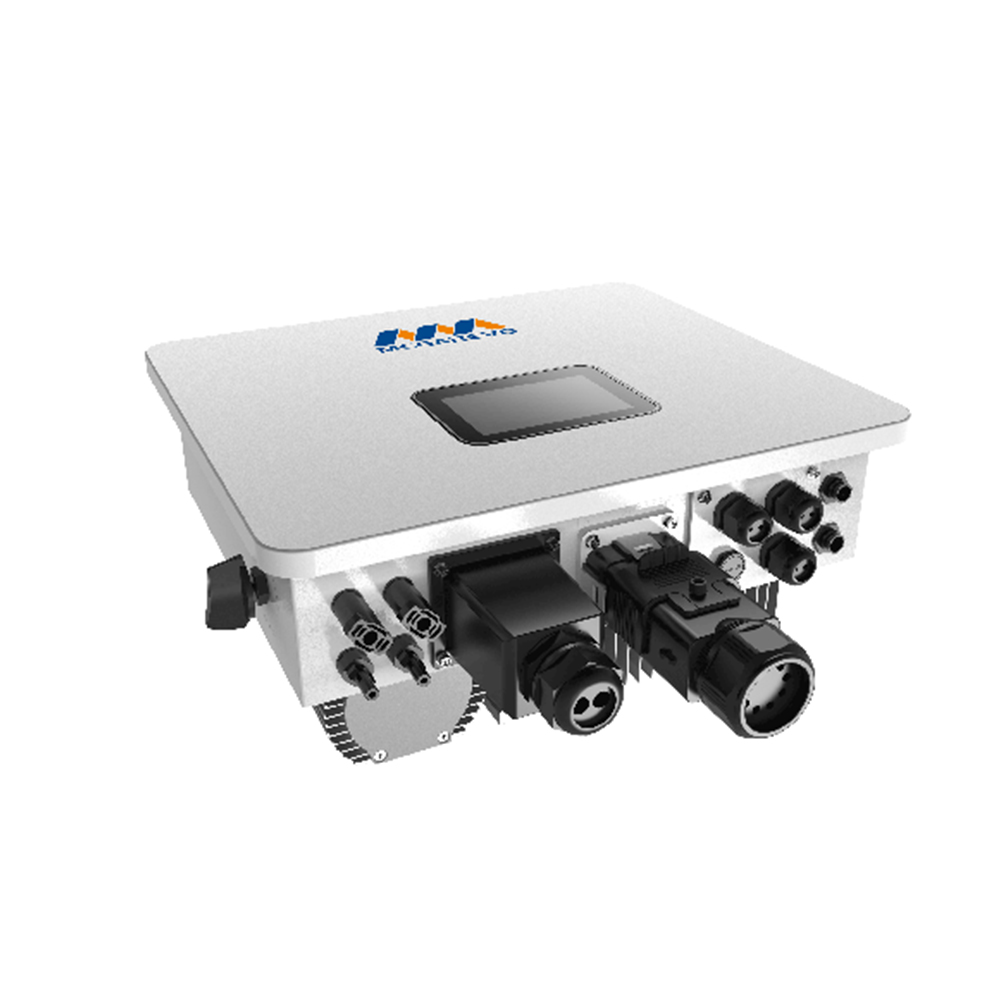

China Megarevo Hybrid Three-phase Inverter Manufacturers,Suppliers,Megarevo Hybrid Three-phase Inverter Competitive Price

Product Details

Product Description

Specification

Model	R6KH3	R8KH3	R10KH3	R12KH3	R15KH3
DC Input
Max.PV input power (kW)	9	12	15	18	22.5
Max. PV voltage (V)	1,000
MPPT voltage range (V)	180~850
Full power MPPT voltage range (V)	250~850	330~850	430~850	510~850	620~850
Start-up voltage (V)	125
Max. input current per MPPT (A)	13/13
Max. short-circuit current (A)	16/16	16/16	16/16	16/16	25/25
Number of MPPT rackers	2
MPPT number/ Max. input strings number	1/1
Rated input voltage (V)	700
AC Output
Nominal output power to grid (kVA)	6	8	10	12	15
Max. apparent power to grid (kVA)	6.6	8.8	11	13.2	16.5
Max. apparent power from grid (kVA)	13.2	17.6	22	26.4	33
Max. apparent current from grid (A)	19.1	25.5	31.8	38.2	47.6
Nominal output current to grid (A)	8.7	11.5	14.4	17.3	21.7
Max.output current to grid (A)	9.5	12.7	15.9	19.1	23.8
Nominal grid voltage (V)	380/400，3W+N+PE
Nominal grid frequency (Hz)	50/60
THDi	＜3%
Battery
Max.charging /discharging Power (kW)	6.6	8.8	11	13.2	16.5
Battery voltage range (V)	125~600
Battery working voltage range (V)	150~550
Max.charging /discharging current (A)	50
Rated.charging /discharging current (A)	40
Battery type	Lithium and Lead Acid Battery
EPS output
Nominal output power (kVA)	8	8	10	12	15
Max. apparent power (kVA)	8.8	8.8	11	13.2	16.5
Nominal output current (A)	8.7	11.5	14.4	17.3	21.7
Max.output current (A)	9.5	12.7	15.9	19.1	23.8
Nominal output voltage (V)	400 ,3W+N+PE
Nominal output frequency (Hz)	50/60
THDu	＜2%
Max.efficiency	97.9%	97.9%	98.2%	98.2%	97.6%
Europe efficiency	97.2%	97.2%	97.5%	97.5%	97.8%
MPPT efficiency	99.9%
Max.battery charge/discharge efficiency	97.5%	97.5%	97.5%	97.6%	97.8%
General Data
Ingress protection	IP65
Operating temperature range (℃)	-25~60
Relative humidity	0~100%
Operating altitude (m)	4,000 (>2,000 Derating)
Dimensions WHD (mm)	596566220
Weight (kg)	32
Self-consumption(W)	＜20
Cooling	Natural
Noise emission (dB)	≤25
EMC	IEC/EN 61000-6-1:2019, IEC/EN 61000-6-2:2019, IEC/EN 61000-6-3:2021, IEN/EN 61000-6-4:2019, IEC/EN 61000-3-2:2019/A1:2021, EN 61000-3-3:2013/A2:2021, IEC/EN 61000-3-11:2019, EN 61000-3-12:2011
On-grid	Europe: EN 50549-1:2019/AC:2019, Poland:EN50549-1:2019/Rfg:2016/NC Rfg:2018/PTPiREE:2021, Germany: VDE-AR-N 4105:2018 /DIN VDE V 0124-100(VDE V 0124-100):2020, South Africa: NRS 097-2-1:2017 Edition 2.1, UK:G98/G99/1-6:2022, Spain:UNE217001:2020 /UNE217002:2020/NTS V2.1:2021-07, IEC61727:2004/IEC62116:2014/IEC61683:1999, Hungary:EN50549-1:2019/RFG:2016/Hungary, Italy CEI 0-21
Safety standard	IEC/EN62109-1:2010, IEC/EN62109-2:201
Display and communication
HMI	LCD; APP
BMS	CAN
EMS/Meter	RS485/RS485
Supported communication interface	WIFI / GPRS

Company Profile

Production Process

Our Advantages

Project Example

Exhibition

FAQ

Q: How much experience do you have in solar manufacturing industry?
A: We have more than 10 years experience in PV industry.

Q: Can you provide customization options for your products?

A: Yes, we provide OEM Service as per your request.

Q: What are the advantages of your company?

A: We have own factory, and we also cooperate with other Tier 1 brands, aiming to provide customers with competitive prices and more choices.

Q: May I have a piece of sample to check the quality?

A: Sample is available to you for checking and evaluating.

Q: How about the delivery time?

A: About 15-20 working days after receiving your payment. (The specific delivery time
depends on the items and the order quantity.)

Q: Where is the port of loading?

A: Shanghai or any port in China.
